Technical Specification

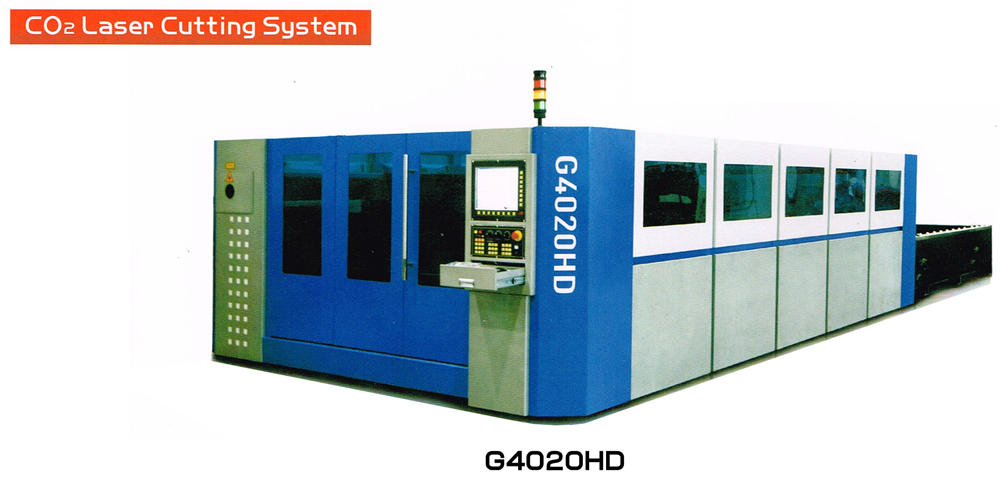

| Performance Indicator Parameter | HAN'S G4020HD |
| Process size (L x W) | 4000 mm x 2000 mm |
| X axis stroke | 4050 mm |
| Y axis stroke | 2020 mm |
| Z axis stroke | 120 mm |
| Positioning accuracy of X, Y axis | +0.03 mm |
| Repeat Positioning accuracy of X, Y axis | +0.02 mm |
| X/Y axis max. acceleration | 1.2 G |
| Max. Positioning speed | 140 m/min |
| Weight of CNC laser cutter | 14 T |
| Max. load of worktable | 1300 kg |
| Phases | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz/60Hz |
| Power supply protection level | IP54 |

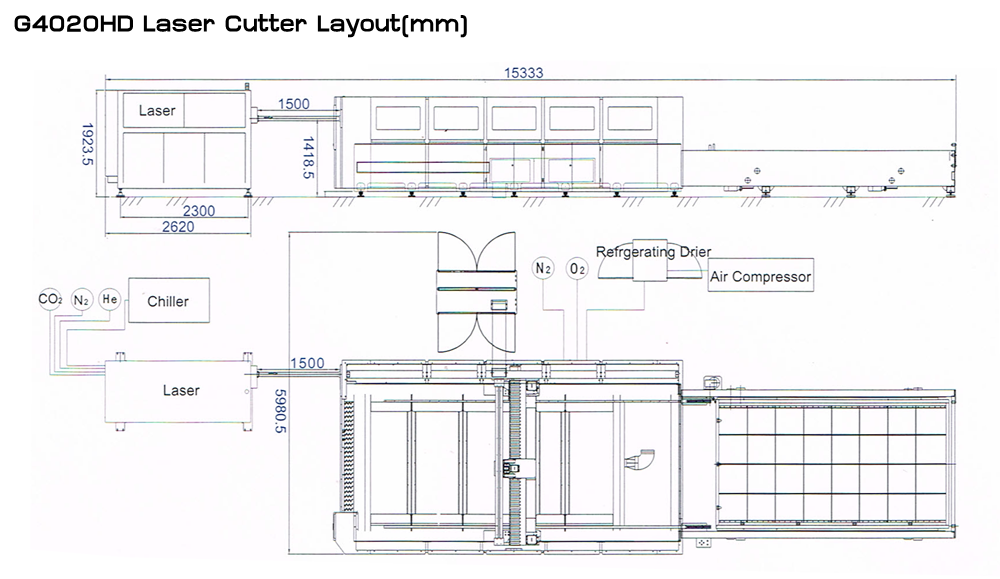

| Dimention (L x W x H) mm | 11400 x 3400 x 2000 |
